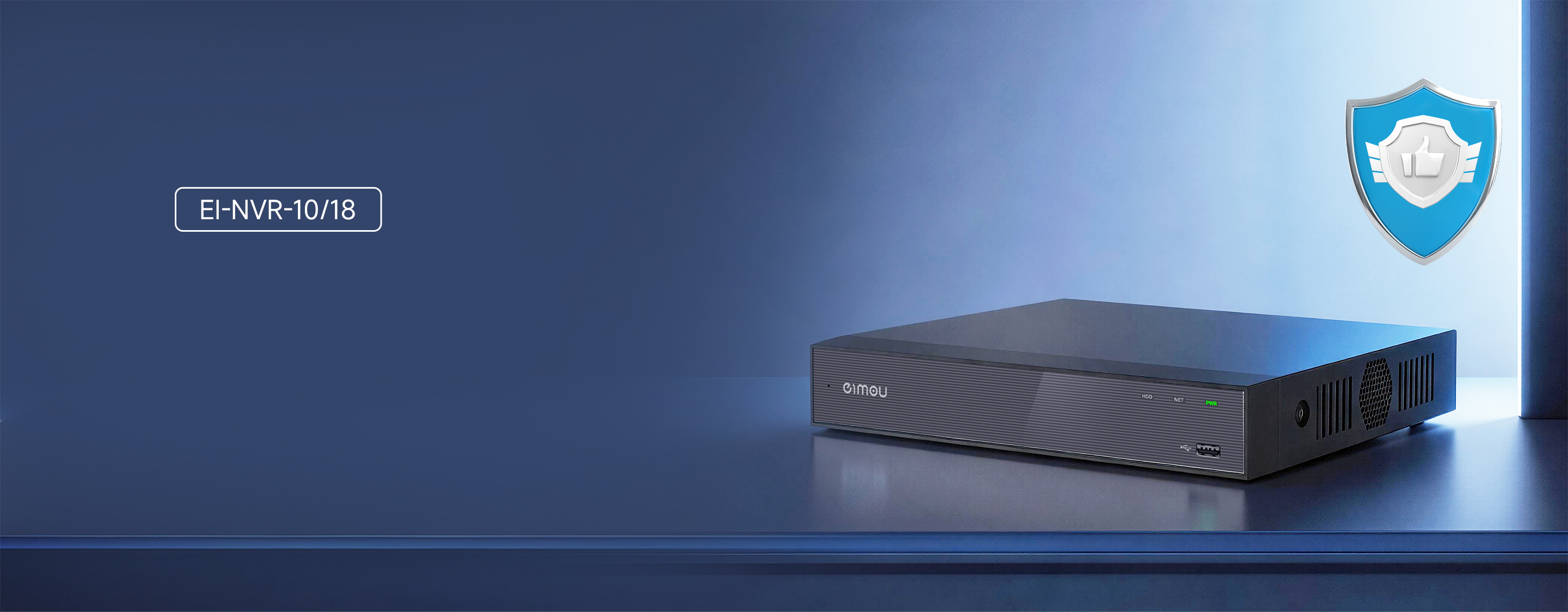

Smart Network Video Recorder
Built-in Mic and Speaker|HDMI/VGA Output

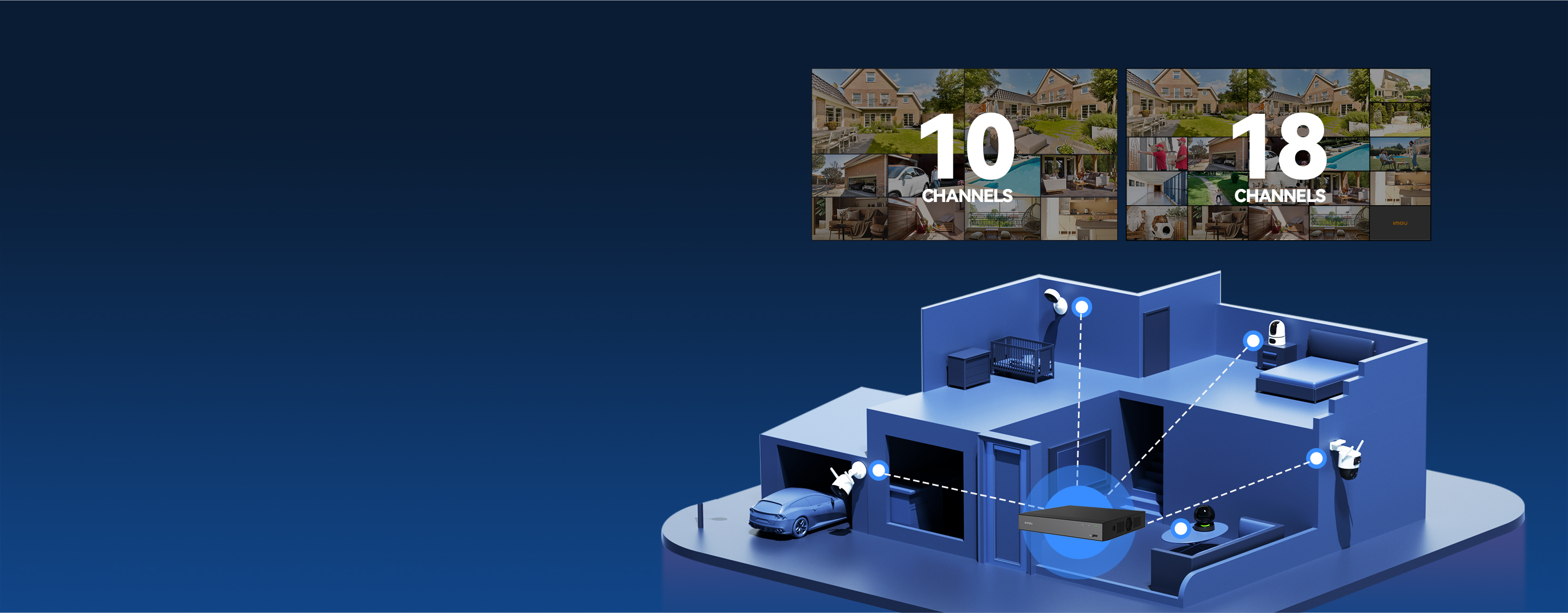

Supports Up to 18 Channels
Flexible access with up to 10 channels on N110 or up to 18 channels on N118, meeting different scalability needs.
Store More, Keep More
Store footage for longer and enjoy smoother viewing with up to 16TB HDD support and efficient H.265 compression.
Two-Way Talk in Real Time
With built-in mic and speaker, talk and listen directly through your NVR for instant communication.

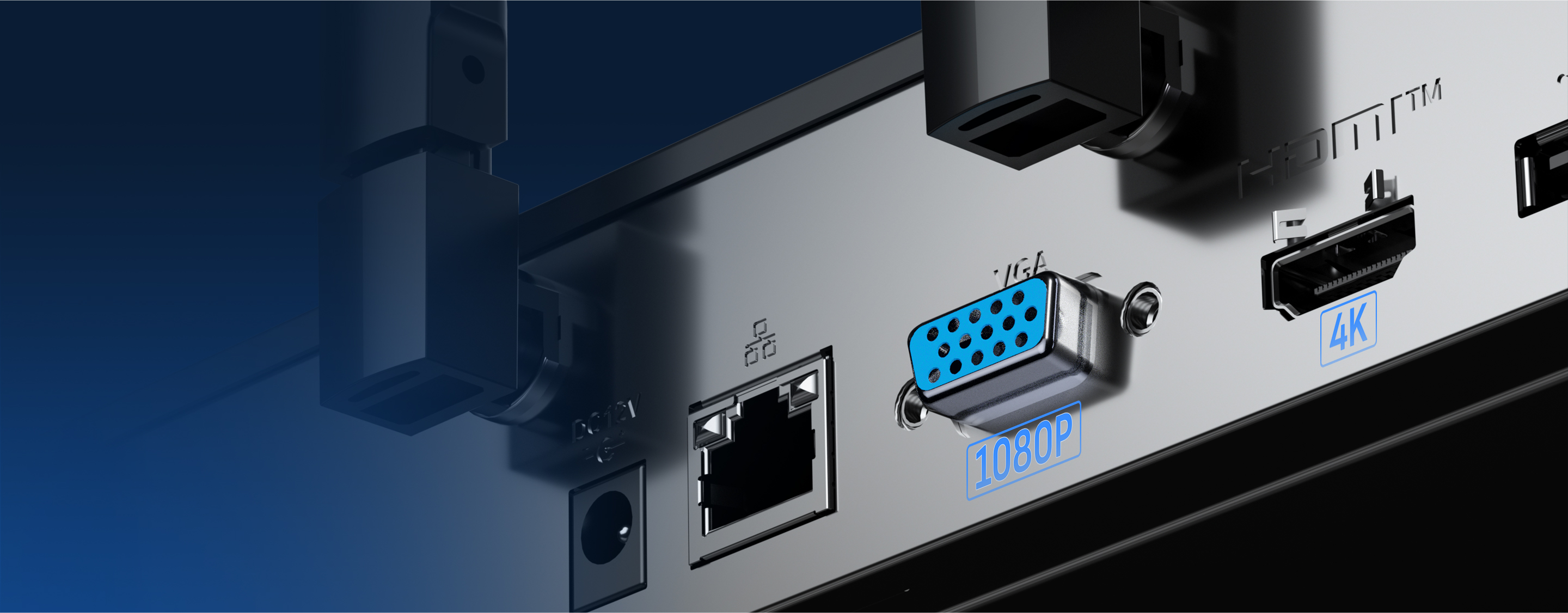

Up to 4K HDMI & 1080P VGA Output
N110 and N118 support local preview with HDMI and VGA outputs—HDMI up to 4K, VGA up to 1080P.

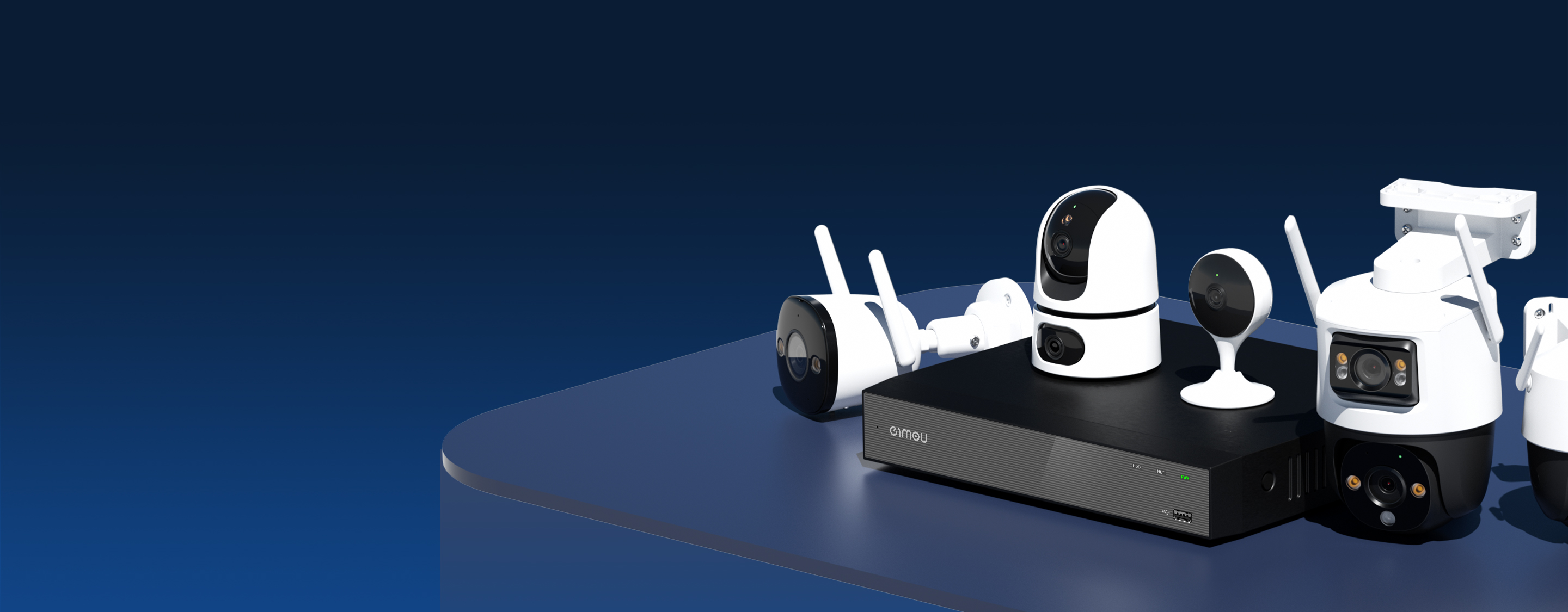

Eimou IPC Auto-Pair with NVR
Quickly and seamlessly pair your Eimou IPCs to the NVR, no hassle.

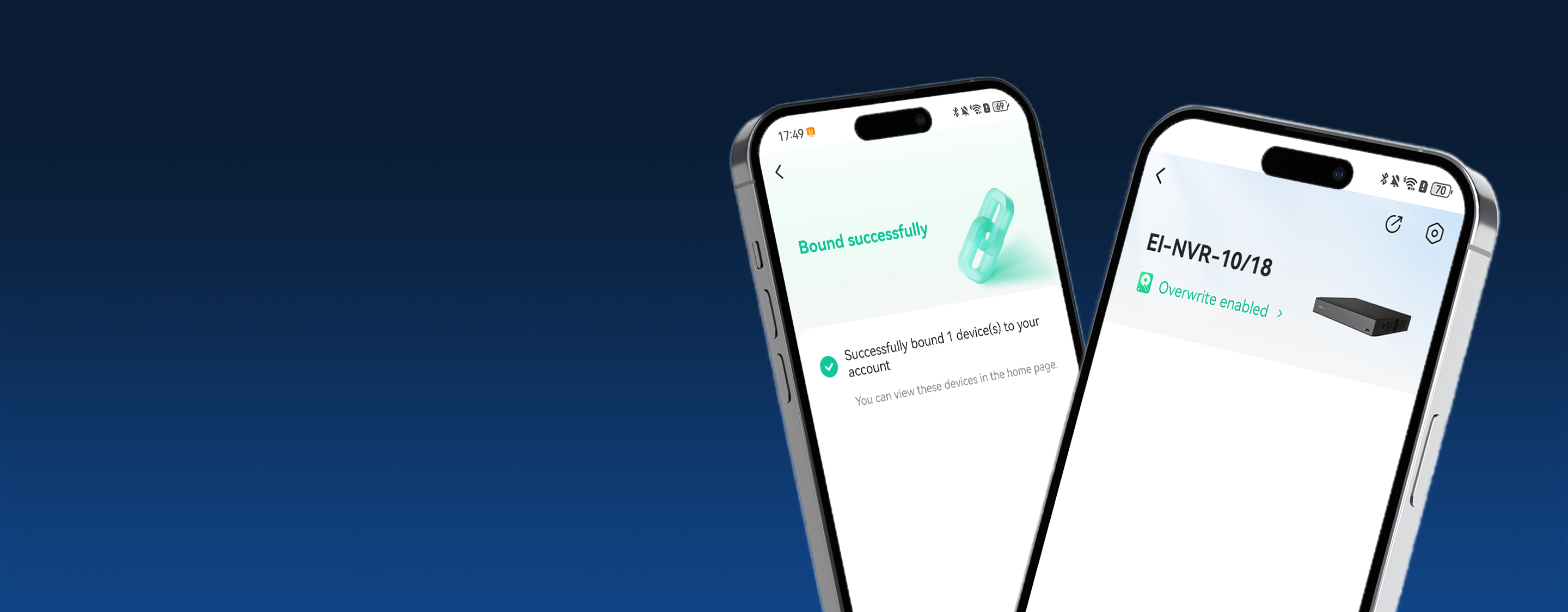

Enjoy IPC Smart Detection Features Effortlessly
Bind your Eimou IPCs to the app in a single click via the NVR, with almost all IPCsmart detection features fully retained.
Your Home's Guardian
Your Business' Protector
Access Channel
10/18 channel
Network Bandwidth
90Mbps
Playback Decoding
4-ch 8MP@15fps; 4-ch 5MP@30fps
Video Compression
H.265/H.264
Audio Compression
AAC
Back-up File Format
MP4
Wired Network
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Compatible APP
Eimou Home APP (IOS&Android)
Third Party Agreement
Onvif
Video Output
1*VGA＆1*HDMI
Audio Input
1*Microphone(Built-in)
Audio Output
1*Speaker(Built-in)
USB Interface
2*USB
Reset Button
YES
Network Interface
1 RJ–45 port (10/100 Mbps)
IPC Connection
Automatically connect to EIMOU cameras
Smart Detection
Motion / Person / Vehicle
Remote Upgrade
Yes
Sound Channel
Two-Way Audio
Hard Drive Capacity
1 SATA port, up to 16 TB
Backup Media
USB Flash Drive
Power Supply
DC 12V 2A
Working Temperature
-10℃~+45℃
Working Humidity
Less Than 95%RH
Dimension(L×W×H)
227.5mm×260mm×45mm
Bare Weight
850g(Without HDD)
Certification
BIS
